Infra-red wall mounted
Introducing a cost-efficient, wall mounted, infra-red sensor plus valve kit perfect for pairing with any single urinal setup. The ET3-12 urinal flush mechanism stands out for its incredible water-saving feature, consuming just 0.9 litres per flush. Impressively, it can function solely on battery power, making it a prime choice for areas where connecting to the mains power supply is challenging. This makes it exceptionally suitable for adding to existing setups with minimum fuss.

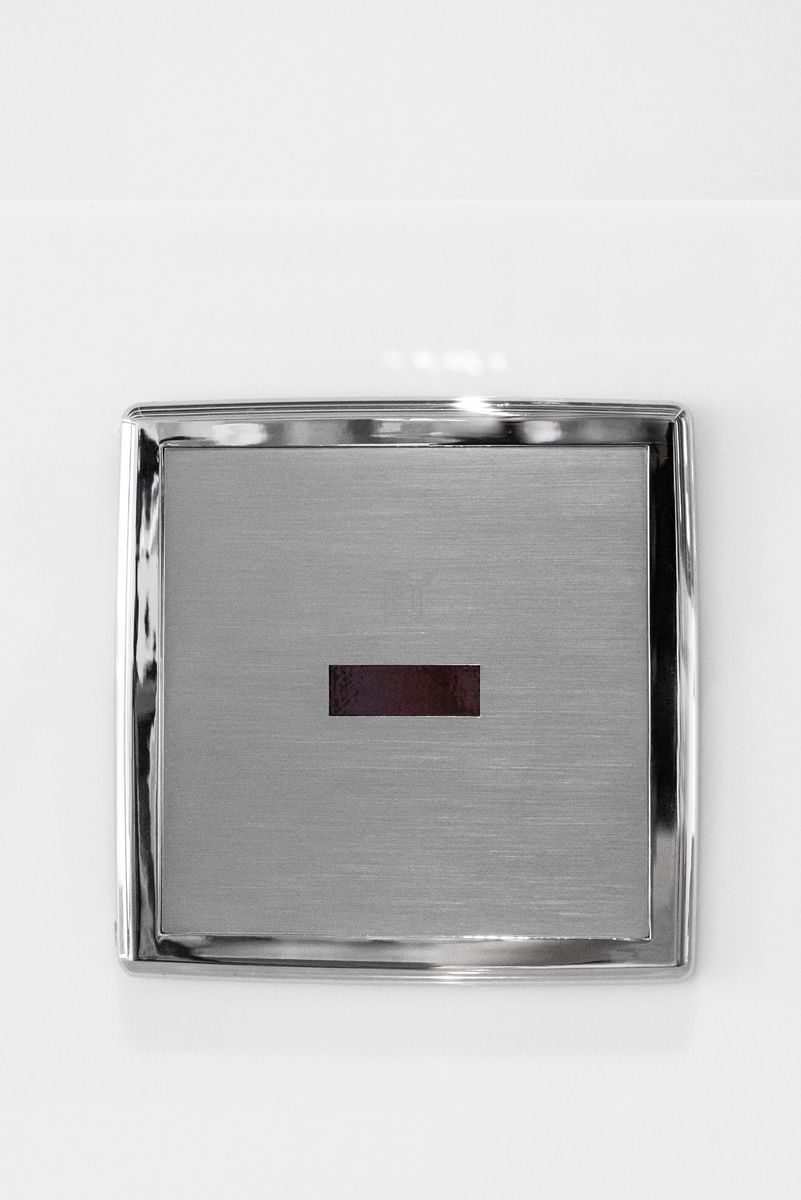

Installation is straightforward - the solenoid compartment is fitted into the wall above the urinal, ensuring that only the simple stainless steel face plate is visible, enhancing the bathroom's aesthetics. The face plate is designed with a magnetic feature, simplifying removal and offering trouble-free access to the system components for regular checks and maintenance. There's no need to construct false walls or worry about cistern upkeep.
This versatile product is a perfect match for any public toilet setting, making it an excellent choice for educational institutions, sports arenas, and any commercial or public restrooms seeking to conserve water and reduce maintenance requirements.
Features
- Hygienic 'no touch' operation
- Only 0.9l per flush
- Stadium mode
- Hygiene flush every 24 hours if not used
- Can be battery powered only - 4xAA batteries required
- Low energy consumption and use of long life batteries allow for up to 110,000 cycles battery life
- Flashing LED light to indicate low battery (when using battery only)
- Adjustable flow restrictor
- Solid bronze position valve
- Vandal resistant stainless steel faceplate
- Easy access to all components through front faceplate
- Suitable for top and back inlet
- Pre-flush
- WaterMark
- 5-Star WELS
Technical Parameters
- Water Pressure 100kPa - 500kPa
- Water temperature 1-50ºC
- Power supply DC6V (4 x AA Batteries)
- Power consumption static ≤0.5W(DC), ≤3W(AC)
- Water inlet G ½"
- Usage confirmation time of 5 seconds
- Response time 1-2 Seconds
- 10 second reset after flush
- Detection zone 750-800mm (adjustable)
- IP54
Product code:
- ET3-12 DC (battery only)
- ET3-12 AC/DC (mains power with battery back-up)
